1586953-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1586953-1
Datasheet:
Description:

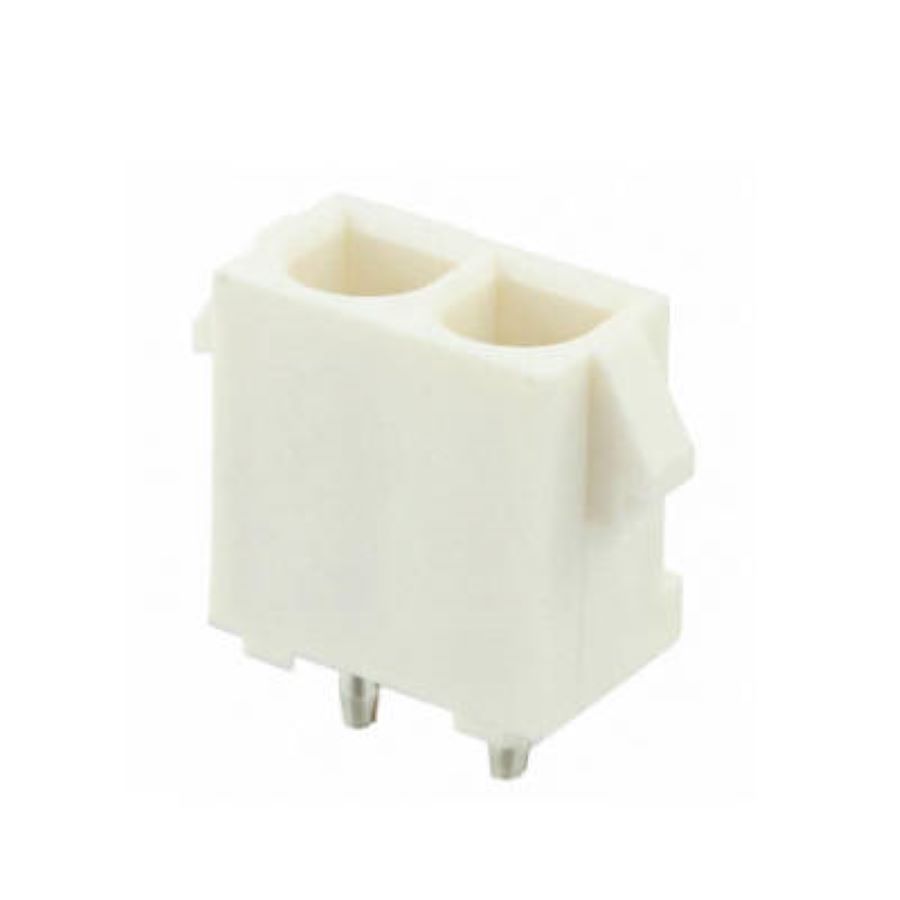

Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:6.35 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | 6.35 mm |
| Current Rating | 12 A |
| Flammability Rating | UL94V-2 |
| Approvals | UL |
| Orientation | Vertical |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Contact Current Rating | 12 A |
| Housing Color | Natural |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 62 µm |
| Contact Gender | Male |
| Number of Power Positions | 2 |
| VDE Tested | Yes |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length | 3.94 mm |
Stock: 407
Distributors
pcbx
pcbxUnit Price$0.29410
Ext.Price$0.29410
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29410 | $0.29410 |
| 10 | $0.25220 | $2.52200 |
| 50 | $0.20818 | $10.40900 |
| 100 | $0.17184 | $17.18400 |
| 500 | $0.15988 | $79.94000 |
| 1000 | $0.14876 | $148.76000 |
| 3000 | $0.13770 | $413.10000 |
| 5000 | $0.12746 | $637.30000 |
| 10000 | $0.11798 | $1179.80000 |
